1.5 Gbps, Gigabit Wireless Ethernet Bridge, Integrated 25 dBi Antennas – 5 Mile – Complete PAIR

$2,449.00

Part #: GNS-5430

1.5 Gbps, Wireless Bridge, 25dBi Antennas – 10 mile – Complete PAIR

Brand:
Availability: In Stock
Category:

Description

Gigabit Wireless Ethernet Bridge for fiber replacement.  25 dBi Integrated Dish Antennas, High throughput, Gigabit POE, Management WLAN.

High throughput, Industrial Grade 802.11AC wireless building to building backhaul antenna using TDMA protocol and 802.11AC technology, this 2×2:2 radio is a great option for medium to long distance point to point wireless bridge to connect your two wireless routers, networks, remote solar or PLC’s.   Capable of 1Gbps+ Mbps throughput, this 802.11AC radio can serve hard to reach remote locations with ease.  10 Mile Point to Point distance can be acheived with clear, unobstructed line of sight only.  Trees, Buildings, Physical Land mass, and other obstructions must be avoided. Please contact us for a free path analysis before installing our gigabit point to point wireless bridge kit.

What’s included in this gigabit point to point wireless bridge kit:

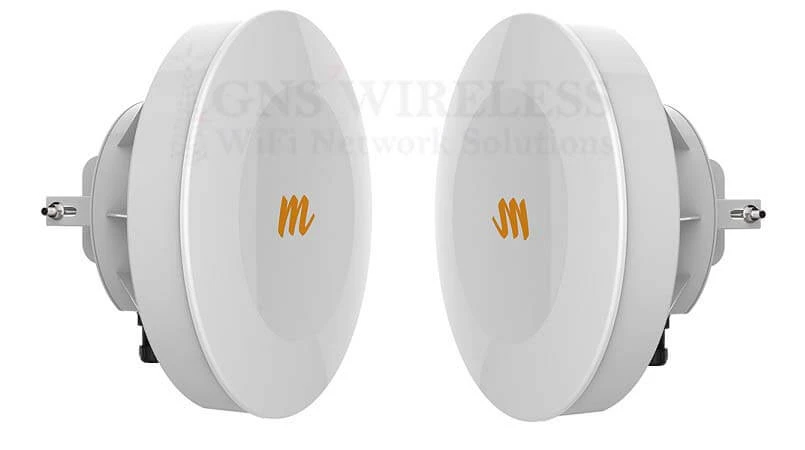

  • 2x Outdoor 802.11AC Radio w/ Integrated 25 dBi Antenna
  • 2x Gigabit POE Injector (PoE)
  • 2x 56V Power Supply
  • 2x 100ft. Shielded cat5e Ethernet Cable
  • 2x Pole Mount Hardware for 1-3″ OD mast

PTP Wireless Bridge Setup:

This fixed gigabit wireless broadband package is pre-configured and paired to each other, for “out of the box” installation and operation. Web based configuration, GUI menus, will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (Shielded cat5e is recommended).  1 year warranty includes technical support from GNS Wireless.  The pre-configuration allows you or your customer to take the wireless bridge antennas out of the box, install, aim, power up…and use. From our experience, the longest part of installing this gigabit wireless broadband package is running the cat5e Ethernet cable from your network switch, or router, up to the roof top, or outside wall, where the antenna will be located.

Maximum Throughput:

This gigabit point to point wireless bridge kit has a operating radio rate of 1.5Gbps IP aggregate. Maximum throughput depends on environmental conditions of your particular application.  Interference, line of sight, obstructions, reflection, fresnol zone obstructions, and other 5 GHz broadcasting equipment will affect the speed and range of this link.  Aggregate throughput is the sum of the throughputs in the uplink and the downlink direction.  This means actual transfer rate, or real time throughput will be in the 750Mbps range, in each direction.  This is assuming perfect conditions. One of the many benefits of this gigabit wireless broadband package is the way the radios handle interference. The wireless bridge radios will automatically load balance across two non-contiguous channels to avoid outages due to interference. If one channel experiences interference the radio maintains connection while simultaneously searching for new replacement channel.  Now, bandwidth can be split across two different channels. Experience the same throughput, with less complication.

Fixed Wireless Technology:

This Gigabit Fixed wireless broadband pair of antennas will allow two fixed locations (IE: building to building or tower to building) to communicate with one another, connecting the LAN infrastructure, or other networked device. These gigabit wireless bridge antennas operate as a layer 2 bridge.

This layer is the protocol layer that transfers data between nodes on the same local area network (LAN) segment.  The data link layer provides the functional and procedural means to transfer data between network devices.  No routing takes place between these wireless bridge antennas.  DHCP on one side of the bridge will be passed to the other side of the bridge, without delay.

PTP Backhaul made Simple:

This wireless gigabit bridge antenna uses one of the lightest gigabit-integrated backhaul in the industry, and features a quick-mount bracket to eliminate installation frustration. Easily provide remote power to this antenna, as it consumes a maximum of 20W.  Installing this gigabit wireless broadband package, even in the toughest outdoor conditions is no problem, as the radios are IP67 rated, and support a temperature range of -40°C to +55°C (-40°F to 131°F).  With a gigabit Ethernet port, and 128-bit AES encryption, this long range wireless bridge provides the latest technology for long range wireless bridge connections.

For more information on our Point to Point Broadband packages, please feel free to contact us at 877-209-5152.


Additional information

Weight 50.0000 lbs
Availability

In Stock

Downloads

GNS-5430_PTP_Datasheet.pdf Size: (452.95 KB)
