14x12x7 – 120VAC Weatherproof Enclosure (4x power outlets)

$376.50

Part #: GNS-7041-005

14x12x7 – 120 VAC Weatherproof Enclosure

Brand:
Availability: In Stock
MFG Part #: Compare to NB141207-100
Category:

Description

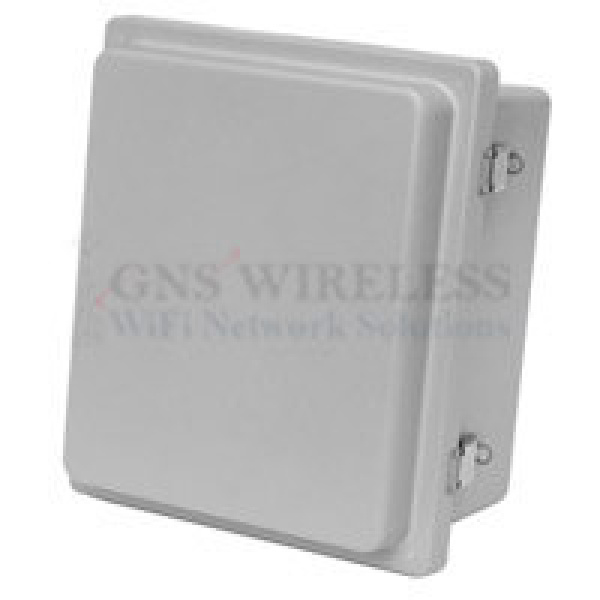

14 x 12 x 7 Outdoor Weatherproof NEMA Enclosure with 4x 120VAC power outlets.  Lockable.

This is a standard lockable enclosure, sized at 14x12x7, hinged locking tabs.  No additional hardware required if you are mounting it to a wall.  For pole mount, we sell a adjustable pole mount hardware kit.  See details here.

The box is a rugged weatherproof enclosure that is ideal for both indoor and outdoor applications. Constructed from molded fiberglass reinforced polyester, it is well suited for high temperature or corrosive environments. The mounting flange allows it to be wall mounted as well as on a flat surface. The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The raised lid is fully gasketed. The enclosure material is UV stabilized and comes in machine tool gray.  Compare this box to the L-Com NB141207-100 Nema Enclosure.

The aluminum mounting plate has provisions to mount WLAN equipment from Cisco®, Symbol®, D-Link®, HyperLink and more. With the optional bracket a wide array of Power Supplies can be mounted as well. Two of these brackets can be mounted side by side. Also available is the Universal Mounting Shelf that can be attached to the mounting plate and can accommodate additional equipment to be placed in the enclosure. The plate features four standard surge protected 120 VAC outlets and a terminal strip to supply power to internal equipment.

Lightning Protection

Surge protection is provided as a standard feature on the internal AC outlets. In addition, the unit can accept up to two optional bulkhead-mount N-Type lightning protectors to protect the coaxial cable runs.  Contact us today for lightning protection recommendations.

Features:

  •  Molded Fiberglass Reinforced Polyester (FRP) industrial enclosure
  •  Stainless steel quick release latches with padlock hasps
  •  NEMA Type 4, 4X/IP66 rated
  •  Fully gasketed raised lid & integral mounting flange
  •  Features aluminum mounting plate with 120 VAC Outlets

Application:

  •  Remote Wireless LAN WiFi equipment installations
  •  Indoor and outdoor installations
  •  Rapid deployment installations
  •  Corrosive environments & hotspot applications
  •  Protection of equipment from theft or damage



Additional information

Weight 25.0000 lbs
Availability

In Stock

MFG Part #

Compare to NB141207-100
