Description

870-960MHz 15dBi Grid Parabolic Antenna, N-Female

15dBi Grid Parabolic Antenna, NF

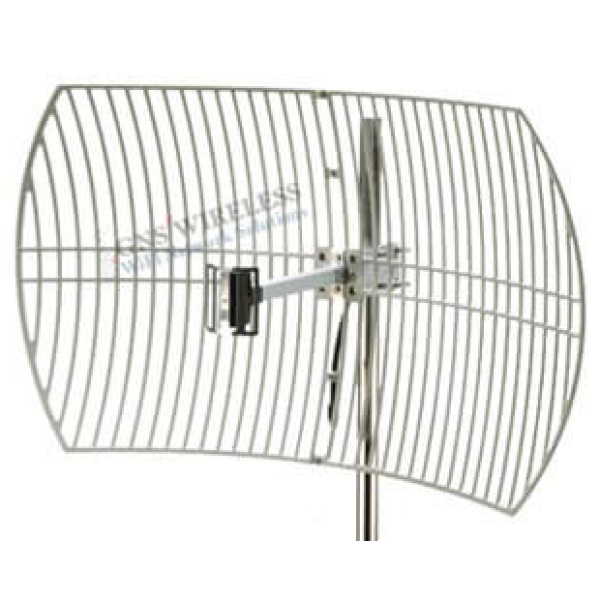

15dBi Reflector Grid Antenna, 870-960MHz, Includes pole mount hardware, N-Female Connector, Die cast aluminum construction, 24″x40″, 6lbs, Non-Line of Sight applications and 900MHz ISM band applications/cellular applications. Recommended pole diameter of 2″ to 4″.

The GNS Wireless high gain 900 MHz reflector grid antenna is a high performance parabolic grid antenna which provides 15 dBi gain with an 18° beam-width for directional applications, backhaul applications, point to point systems and Non Line of Sight (NLOS) installations. It is ideally suited for 900MHz ISM and GSM bands. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links and 900MHz Cellular. External interference of this antenna is minimized due to the excellent front to back ratio. This antenna comes with a integrated N-Female connector.

The 900 MHz parabolic antenna construction features a die cast aluminum reflector grid for superior strength and light weight. This antenna’s 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading. This antenna is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 20°. This 900 MHz parabolic antenna can mount to a 1.25″ (31.8mm) to 2″ (50.8mm) diameter mast.

Features:

• Superior performance
• Die Cast aluminum construction
• UV stable light gray powder coat finish
• All weather operation
• 18° beam-width
• 2-piece design for ease of shipment


Applications:

• 824-960 MHz ISM, Cellular Bands, LTE
• Wireless LAN and Video Applications
• Non Line of Sight (NLOS)
• Long-range Directional Applications
• Point to Point and Multi-point Systems, Wireless Bridges and Backhaul Applications
