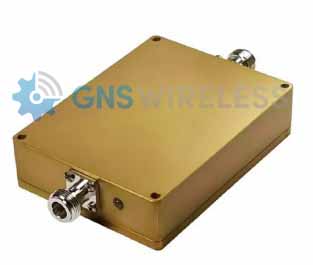

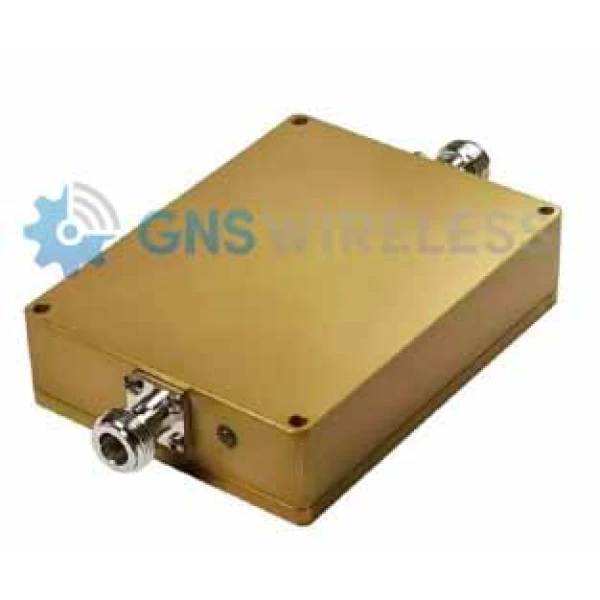

5.0 to 6 GHz Bi-Directional Amplifier, 15 Watt Indoor/Outdoor

This is a wide band, multi-frequency bi-directional amplifier that works from 5GHz to 6 GHz frequency.  The amplifier offers a high speed switch to allow for high datarate radios to function.  Peak transmit power of the amplifier is 42dBm.

This amplifier is packaged in an outdoor watertight housing with power over coax.  Indoor DC injector is included.  N-Female connectors.

Electrical:

Operating Range 5000 – 6000 MHz
Operating Mode TDD, Time Division duplex,
Transmit PeakPower 43dBm +/- 1
Transmit Gain 17 dB +/- 2
Transmit input Power 3dBm min 20 dBm max
Receive Gain 20~22 dB
Noise Figure 3.5 dB
LED indicators Red for Receive (Default mode)
Green for Transmit
Power Consumption 100mA Rx, 3.1A Tx @ 28 VDC
Operating Temp -40 °C to + 70 °C

Mechanical:

Outdoor CNC machined Al enclosure:
4.5 x3.5 inch, 1.1” high
Weight 14 Oz
