Description

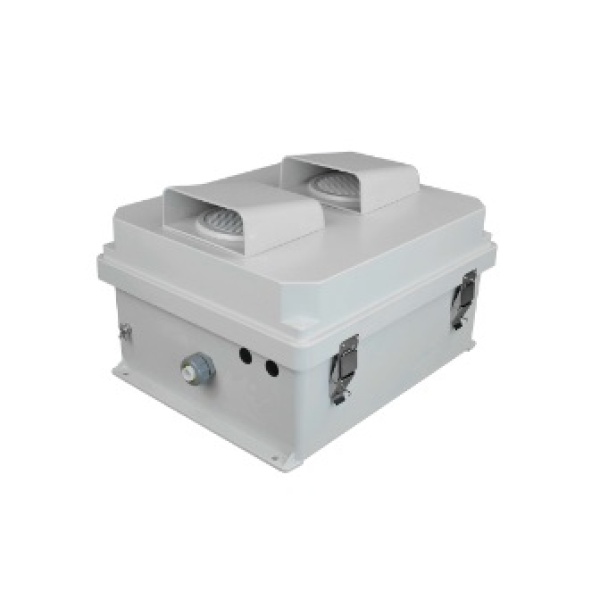

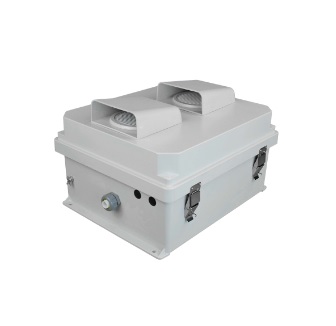

18x16x8 – 120 VAC Weatherproof NEMA Enclosure with Vents

The weatherproof NEMA box is a rugged 18″ x 16″ x 8″ enclosure that is ideal for both indoor and outdoor applications. Constructed from molded fiberglass, this vented outdoor enclosure is well suited for high temperature or corrosive environments. The mounting flange allows it to be wall mounted as well as on a flat surface. The box can also be pole mounted with the optional pole mounting hardware kit. The fully gasketed lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The enclosure material is UV stabilized and comes in machine tool gray. The outdoor NEMA enclosure also features holes for mounting Lightning Protectors or Connectors, a grounding lug and cable conduit connector.

This 18x16x8 vented outdoor enclosure features a vented lid with removable filters and vent covers on the outside of the enclosure.

Surge protection is provided as a standard feature on the internal AC outlets. In addition, the weatherproof NEMA box can accept up to two optional bulkhead-mount N-Type lightning protectors to protect the coaxial cable runs.

• Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure
• Stainless steel quick release latches with padlock hasps
• NEMA Type 3R, 3RX / IP24 rated
• Fully gasketed raised Vented lid with removable filters & integral mounting flange
• This vented NEMA enclosure features an aluminum mounting plate with surge protected duplex 120 VAC Outlets
