680 Mbps, 2.4 GHz Wireless Ethernet Bridge for Point to Point (Complete Link)

$1,949.00

Part #: GNS-5424-HD

500Mbps, High Speed Wireless Bridge Point to Point, 3 Mile, Complete Pair

Brands:
Availability: In Stock
Category:

Description

680 Mbps Point to Point Wireless Ethernet Bridge for Point to Point operating at 2.4 GHz

Wireless Ethernet Bridge from GNS WIRELESS

With the 900 MHz equipment for point to point all but completed removed from production, this 2.4 GHz wireless link is the next best option when you have trees in the way of your Wireless Ethernet Bridge scenario.  It includes the 2. 4 GHz airFiber radios, paired with 19 dBi flat panel directional antennas for a low latency, high throughput wireless link.   Distance will vary, but we have successfully used this link up to 1 mile with clear, unobstructed line of sight.  When your application demands a non line of sight link, we have had success up to about 1/2 mile, with 50% tree obstruction.  We recommend contacting us first to discuss your scenario before ordering.

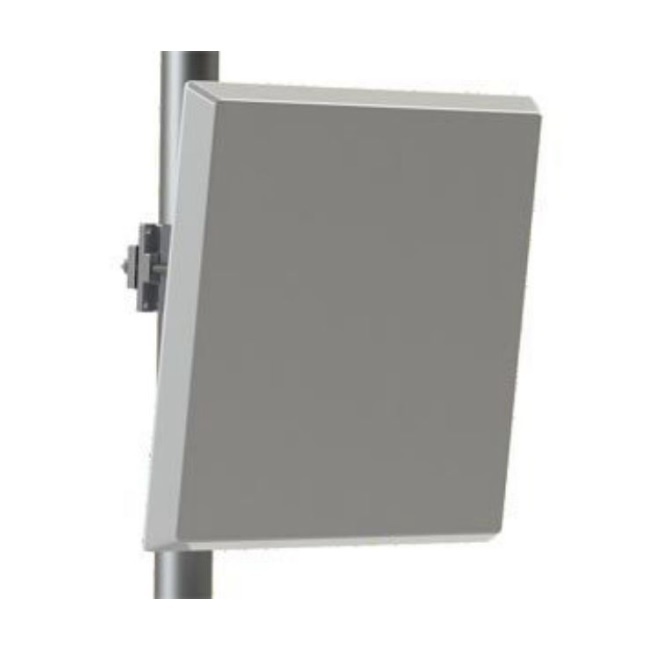

The 19 dBi flat panel antennas included in the package are only 14″ square, and very light weight at only 4 lbs.  They can be mounted easily using the GNS-1433 universal mounting arm, or onto a standard 1 1/4 to 3″ mast.  Contact us for more information.  The antennas will connect to the airFiber radio via the included 3ft. coaxial cables.

What’s included in this 680 Mbps wireless Ethernet bridge (complete link):

2x Outdoor 2.4 GHz airFiber Radios
2x Outdoor 19 dBi Flat Panel Antennas
2x Power over Ethernet Injector (24V PoE)
2x 50ft. Shielded cat5e Ethernet Cable
2x Pole Mount Hardware for 1-2″ OD mast
2x N-Male to RPSMA-Male 3ft. Coaxial cable

This building to building high speed wireless Ethernet bridge is pre-configured and paired to each other, for “out of the box” installation and operation.  External Signal LED’s will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (Shielded cat5e is recommended).  1 year warranty includes technical support from GNS Wireless.

Installation:

No configuration is required. Web based management allows for adjustment of transmit power, wireless security type, signal strength/signal noise reading, and real time throughput estimates. POE, PS, and pole mount hardware is included in the kit. Any 1-2″ diameter mast/pole, will allow you to mount the antennas. If you require additional mounting hardware for your building to building wireless bridge, please let us know.

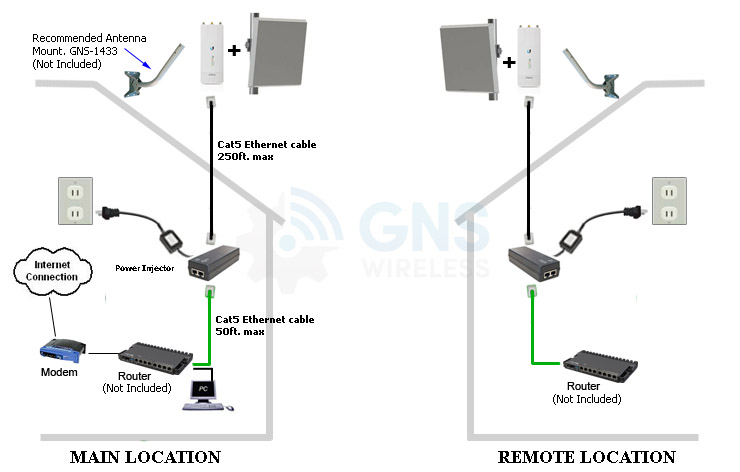

Connection to Network:

To connect the bridge radio to your network at each location, a single Cat5 Ethernet cable is used. A 50ft. cable is included for each location. (If you need more cable, a maximum length of up to 250ft. can be used) The Cat5e Ethernet cable connects directly from the outdoor access point using a weatherproof grommet (included), to an indoor POE (Power-over-Ethernet) injector. The POE injector plugs into a standard AC outlet for power, and another Cat5 Ethernet cable connects from the POE injector to your network (Router/PC/Switch etc.)

At the MAIN location, you will typically connect to an open LAN port on the back of your existing router, or switch. At the REMOTE location, you can connect either directly to a PC if you only have a single computer, or you can connect to an indoor wired/wireless router. This will allow you to run multiple computers over the wireless bridge.

Security Features:

This wireless Ethernet bridge kit operates as a transparent bridge. It is similar to an invisible Ethernet cable connecting your two locations. It includes multiple security options including WEP/WPA/WPA2. It also has ability to enable MAC address authentication so that only the two access points are able communicate. You can hide the network SSID, and because the beam width of the antennas is directional, (about 10°) the signal is not being broadcasted in all directions, only in the direction you aim the outdoor antenna.  All VLAN tagged frames will be passed seamlessly over the link.  If you have any other questions, please contact our Pre-Sales/Technical Support Dept. at (516) 214-0321.


Power Over Ethernet:

The secure high speed building to building WiFi bridge includes a 24V, 1A POE Gigabit Adapter for each radio.  The Passive power over Ethernet injector will supply both power and data to the outdoor access point using a single cat5e Ethernet cable.  Maximum power consumption is 15W per access point.
