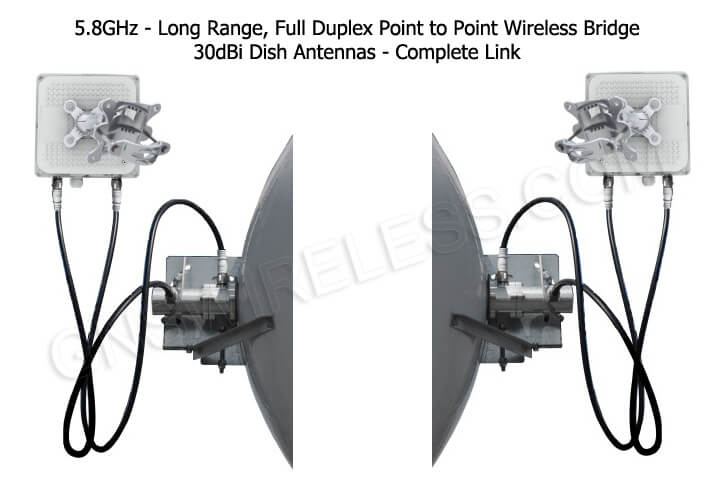

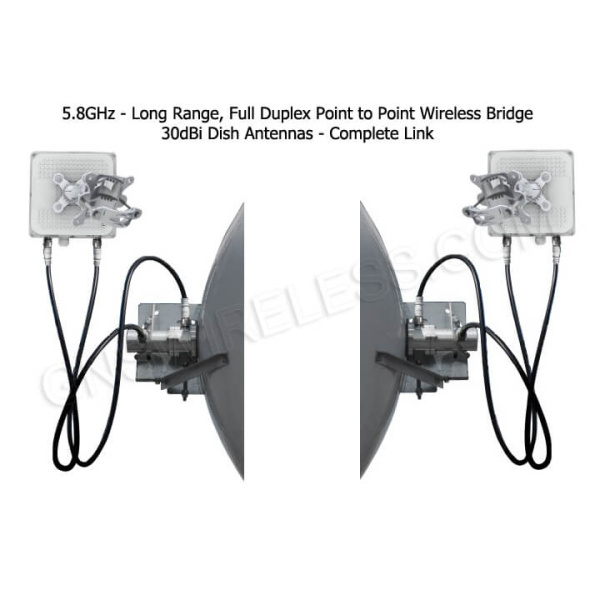

220Mbps, 5.7 – 5.8GHz, Full Duplex, Point to Point Wireless Bridge, 32dBi Dish Antennas, 29dBm TX/RX Power, 128bit encryption, POE/PS included, 1-yr warranty – Pre-Configured – 10 Mile | Complete Link

Description

Whats included in this Full Duplex point to point link:

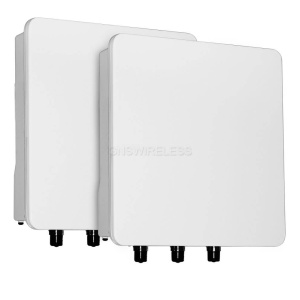

2x Outdoor Connectorized Radios
2x 32dBi Dish Antenna (3ft.)
4x 5ft. Low loss coaxial cable (NM/NM)
2x Power over Ethernet Injector (PoE) | 10/100/1000
2x Power Supply

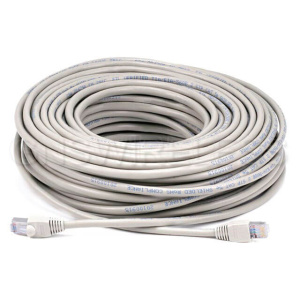

2x 50ft. cat5e Ethernet cable
2x Pole Mount Hardware for 1.5-2" OD mast
1 Year Warranty including Technical Support

Bridge antennas are pre-configured for "out of the box" installation and operation. External Signal LED's will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (Sheilded cat5e is recommended)

Features:
802.11N, 5.8GHz, High Capacity (65K Packets per Second (PPS)), 200Mbps aggregate throughput, AES/WPA2 encryption, low latency, POE/PS included, pole mount hardware included, 802.3af support, auto modulation and auto channel, IP67 Enclosure, integrated spectrum analyzer. This is a complete link to include everything needed to connect 2 locations, up to 4 miles apart, clear-unobstructed line of sight is required. Pre-configured for "out of the box" installation. Technical support included. Complete link.

Connection to Network:
To connect the access point to your network at each location, a single Cat5 Ethernet cable is used. A 50ft. cable is included for each location. (If you need more cable, a maximum length of up to 200ft. can be used) The Cat5 Ethernet cable connects directly from the outdoor access point using a weatherproof grommet, to an indoor POE (Power-over-Ethernet) injector. The POE injector plugs into a standard AC outlet for power, and another Cat5 Ethernet cable connects from the POE injector to your network (Router/PC/Switch etc.) At the MAIN location, you will typically connect to an open LAN port on the back of your existing router, or switch. At the REMOTE location, you can connect either directly to a PC if you only have a single computer, or you can connect to an indoor wired/wireless router. This will allow you to run multiple computers over the wireless bridge. See Diagram below.

Additionally, the new product is compatible with previous LigoPTP 5-23 MiMo and LigoPTP 5-N MiMo models. This product enables carrier-class point-to-point capability, ideal for dedicated access or backhaul applications (including VOIP or other small packet applications). The Ligo PTP PRO product family couples flexible channel width capability (20 or 40 MHz) and industry-leading proprietary software mechanisms to set the utmost standard in spectral efficiency.

This 5.8Ghz full duplex backhaul features an integrated dual-polarized antenna or two N-type connectors. They are housed in rugged, cast aluminum enclosures. Combining digital signal processing, dual polarization antennas and proprietary W-Jet 2 MiMo protocol these bridges have a high spectral efficiency of 7.5bit/Hz. This link includes an array of advanced software mechanisms that provide optimal point-to-point connectivity for high-throughput, long distance links.

The proprietary PTP mechanisms utilize techniques such as Dynamic Time Division Duplexing (TDD) to dynamically allocate bandwidth in the direction needed, thus increasing link efficiency and greatly decreasing the impact that distance has on throughput of the link. The LigoWave point-to-point products also features selective repeat ARQ technology, an enhanced error-correction software mechanism that optimizes data traffic to provide very high throughput over high-bandwidth, long-range links even in the presence of interference.

The new PRO series products have an extremely powerful integrated 30 dB (1000 mW) radio which allows building solid long-distance links even with an integrated antenna. The output power on highest modulation (MCS 15) is 24 dBi which is hard to find elsewhere in the market today.

Gigabit Ethernet port and 802.3 af standard support makes the PRO series product line even more flexible. Im-provements on the SURGE and ESD protection side make this product ideal for mission critical and harsh-weather condition installations. SURGE and ESD protection was designed according to IEC 61000-4-2 (ESD) and IEC 61000-4-5 (SURGE) standards.
