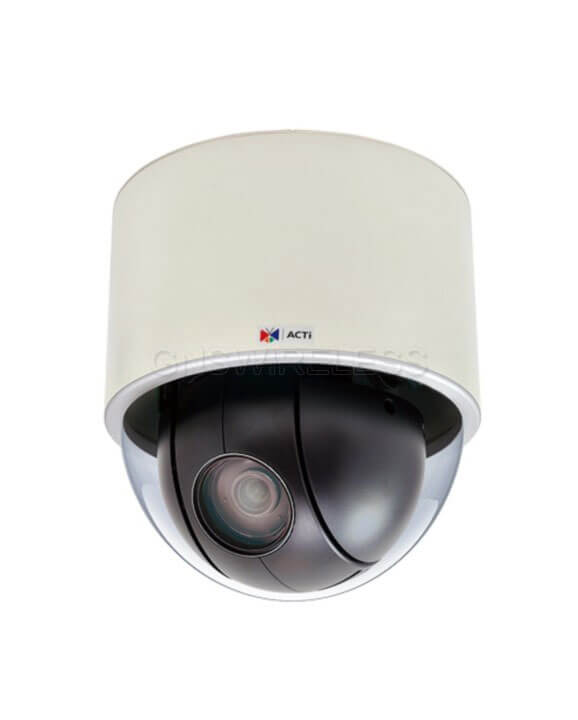

| Model | I92 |
| Product Type | PTZ |
| Maximum Resolution | 2MP |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.1 lux, B/W: 0.05 lux at F1.6 |
| Mechanical IR Cut Filter | Yes |
| IR LED | No |
| Lens | Zoom, f4.3-129mm / F1.6-5.0, DC iris, Auto focus |
| Zoom Ratio | 30x optical, 16x digital |
| Panning and Tilting Range | Pan: 0°-360° (with Auto-flip); Tilt: 0°-180° |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 66.4°-2.68° |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 |
| Horizontal Resolution (TV lines) | 1800 TVL |
| Multi-Streaming | Dual streams |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Digital Noise Reduction | 2D+3D DNR |
| Digital Image Stabilizer | Digital Image Stabilizer |
| Defogging | Defogging |
| S/N Ratio | 56 dB |
| Audio | 2-way (Line-in, Line-out) |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P |
| Network Connector | RJ-45 |
| Digital Input/Output | 2/2 |
| Local Storage | MicroSDHC/MicroSDXC memory card slot (card not included) |
| Power Source | DC 12V; High PoE |
| Environmental Casing | Vandal Resistant (IK09) |
| Bundled Accessories | Surface mount; Power adapter |
| Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush |
| Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server) | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection |
| Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
| ONVIF Compliant | Yes |
| Heater | No |
| Fan | No |
| Starting Temperature | -10°C ~ 50°C
(14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C
(14°F ~ 122°F) |
| Approvals | CE, FCC, IK09, UL (for bundled power adapter) |
| Warranty | 3 Years*
(1 Year in continuous motion) |
