Description

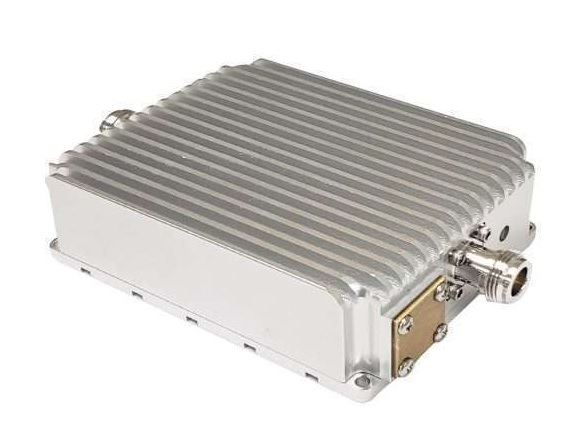

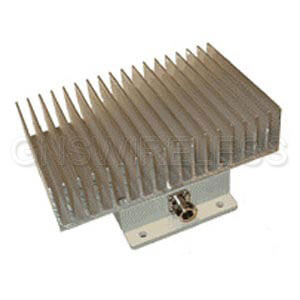

2.4 GHz to 6 GHz Bi-Directional Amplifier, 5 Watt Indoor/Outdoor

This is a wide band, multi-frequency 5 Watt Bi-Directional Amplifier that works with 2.4 GHz to 6 GHz frequency.  The amplifier offers a high speed switch to allow for high datarate radios to function.  Peak transmit power of the amplifier is 37dBm.

This amplifier is packaged in an outdoor watertight housing with power over coax.  Indoor DC injector is included.  N-Female connectors.

This amplifier does not use AGC (automatic gain control)  It is fixed TX/RX gain.  If you want to run an amplifier with output power= +38dBm then you need a bigger Amp of about 30-40W.  You have to back off at least 5-7dBm from the peak power for nice and clean signal at 38dBm.

Electrical:

Operating Range 2400 – 6000 MHz
Operating Mode TDD, Time Division duplex,
Transmit PeakPower 38dBm +/- 1
Transmit Gain 16 dB +/- 2 (24dB optional)
Transmit input Power 3dBm min 20 dBm max
Receive Gain 20~22 dB
Noise Figure 3.5 dB
LED indicators Red for Receive (Default mode)
Green for Transmit
Power Consumption 100mA Rx, 2.0A Tx @ 28 VDC
Operating Temp -40 °C to + 70 °C

Mechanical:

Outdoor CNC machined Al enclosure:
4.5 x3.5 inch, 1.1” high
Weight 14 Oz
