Description
60 GHz 5.4 Gbps max. throughput (2.7 Gbps duplex) main radio
- 60 GHz 5.4 Gbps max. throughput (2.7 Gbps duplex) main radio
- 30° sector coverage
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) 2.5 GbE and (1) 10G SFP+ WAN ports
- 15 client antenna capacity:
- Integrated GPS & Bluetooth

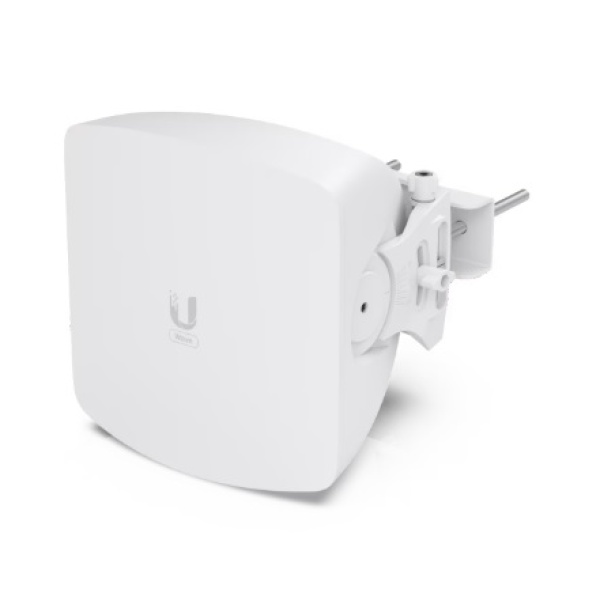

For setting up a wireless mesh backhaul system in the 60 GHz frequency range has never been easier. If your client antennas, or sub-stations are within the 30 degree coverage area, and have clear, unobstructed line of sight, this 60GHz AP will provide point to multipoint connectivity for up to 15 remote stations, with gigabit speeds.
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4″) |
| Weight | 2.3 kg (5.07 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Pole mount diameter | 25 to 76 mm (1 to 3″) on pipe outer diameter |
| Wind loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
|---|---|
| Processor | Quad ARM Cortex-A53 cores at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10) * Active only when SFP+ port is down. |
| Max. power consumption | 24W |
| Power method | 48V DC passive PoE 4-pairs (1, 2; 3, -) (4, 5; 7, 8) or 2-pairs (4, 5; 7, 8) 24V DC passive PoE 4-pairs (1, 2; 3, 6) (4, 5; 7, 8) |
| Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (included) |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP access point |
| Features | Wave technology |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Management application | UISP: Version 1.5.7 and later |
| System | |
| Total throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Supported clients count | 15 |
| Range | Connecting to a Wave Long-Range: up to 8 km Connecting to a Wave Nano: up to 5 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
| GPS | Yes |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 24 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 30° Elevation: 3 dB 3°, 6 dB 4° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz 5150 – 5875 MHz |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 12 dBi |
| Cross-pol isolation | 10 dB |
| Electric downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
