Description

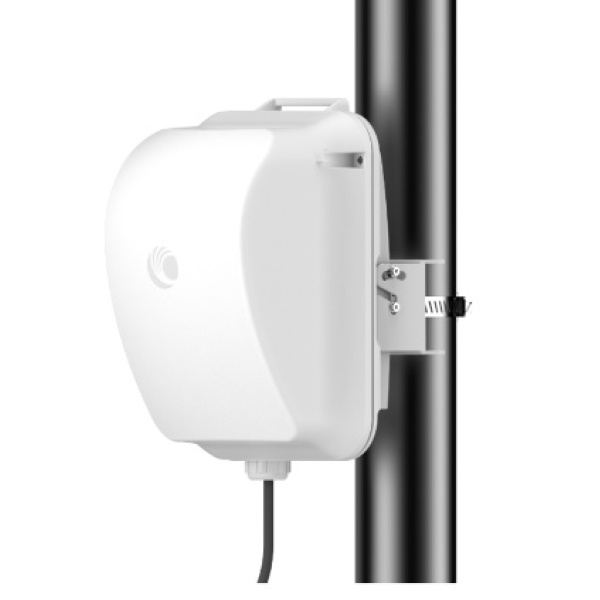

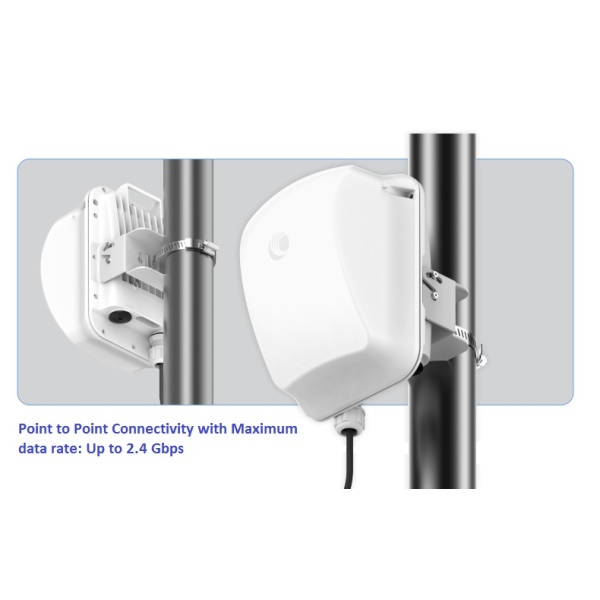

60GHz cnWave V2000 Client Node 30W with USA Line Cord (END Only)
The cnWave 60 GHz V2000 client node features a 2.5 GbE PoE input port as well as a 2.5 GbE PoE 802.3at output port for powering Wi-Fi access points or video surveillance cameras. This makes the V2000 perfectly suited for use as a long range, high bandwidth backhaul for Cambium’s XV2 series of outdoor Wi-Fi 6 AP’s.
The V2000 is designed for high-speed and high-density deployments- Cambium Networks’ cnWave 60 GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.
The V2000 features a 2.5 GbE PoE input port as well as a 2.5 GbE PoE 802.3at output port for powering Wi-Fi access points or video surveillance cameras.
The V2000 is a 60 GHz wireless technology developed by Cambium Networks that offers high-speed connectivity with low latency and interference. The cnWave V2000 is a specific model of the cnWave platform and offers the following specifications:
-
Frequency band: 57-71 GHz
-
Channel bandwidth: 2.16 GHz
-
Modulation: 256 QAM
-
Up to 3.6 Gbps (1.8 Gbps DL and 1.8 Gbps UL) PTP MODE
-
Future channel bonding feature will increase capacity to up to 5.2 Gbps
-
Range: Up to 1.5 km
-
Antenna gain: 30 dBi
-
Radio interface: 2×2 MIMO
-
Ethernet interface: 1x 10/100/1000 Base-T Ethernet (RJ45)
-
Power consumption: 25W (typical)
-
Power supply: PoE+ (802.3at)
-
Operating temperature: -40°C to +60°C
-
Dimensions (W x H x D): 195 x 195 x 90 mm
-
Weight: 1.7 kg
These specifications make the cnWave V2000 ideal for high-bandwidth applications such as video streaming, wireless backhaul, and high-speed data transfer over short to medium distances. The use of the 60 GHz band also means that interference from other wireless networks is minimized, resulting in reliable and secure connectivity.
