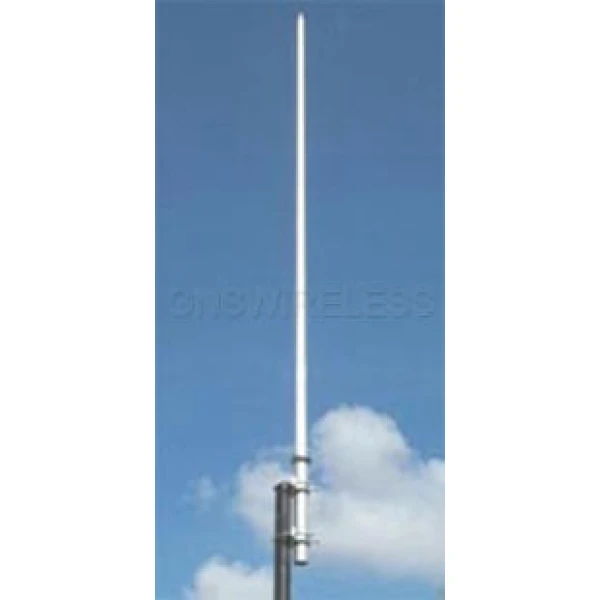

6dBi, 824-960MHz, Omni-Directional, Heavy Duty, N-Female , mounting hardware included

Description

6dBi Omni-Directional, High Gain, Heavy Duty, 824-960MHz, N-Female connector, mounting hardware included, 23″ Long, Once piece UV stablized fiberglass.  Compare to Laird or Hana Wireless OD9-5.

The GNS Wireless 6dBi, 900MHz omni directional antenna is a high performance omnidirectional antenna designed for the 800 MHz / 900 MHz ISM band. It is ideally suited for multipoint, Non Line of Sight (NLOS) and mobile applications where high gain and wide coverage is required.  Typical applications include 900 MHz Wireless LAN, SCADA, Wireless Video Links and 800 MHz as well as 900 MHz Cellular band applications.

This antenna includes an integral N-Female bulkhead type connector that has the ability to mount through the wall of an equipment enclosure.  Included with the 900 MHz omni directional antenna is a mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0″ in diameter.

This omni antenna’s construction features a rugged 1.3″ diameter white high intensity fiberglass radome for durability and aesthetics. It is designed for all weather operation for both indoor or outdoor applications.

Features:

• Superior all weather performance
• Rugged industrial grade design
• Lightweight fiberglass radome
• Integral N-Female connector
• Heavy-duty steel mounting bracket

Applications:

• 900 MHz ISM Band & Wireless LAN systems
• Multipoint applications
• Non Line of Sight (NLOS)
• Wireless Video Links
• GSM
