Description

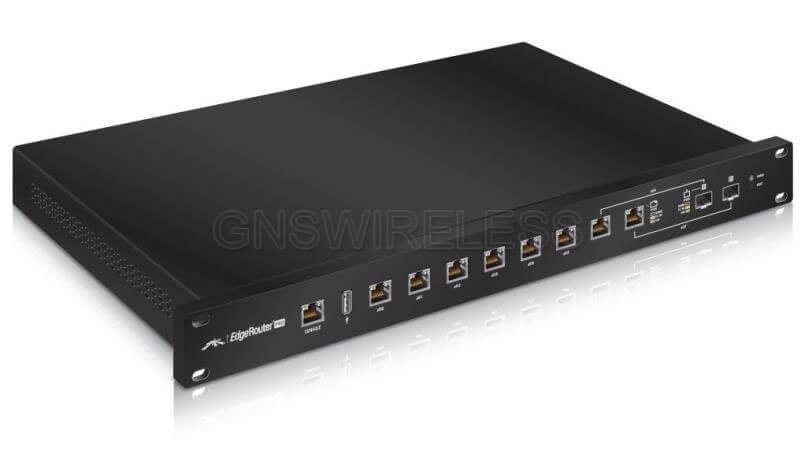

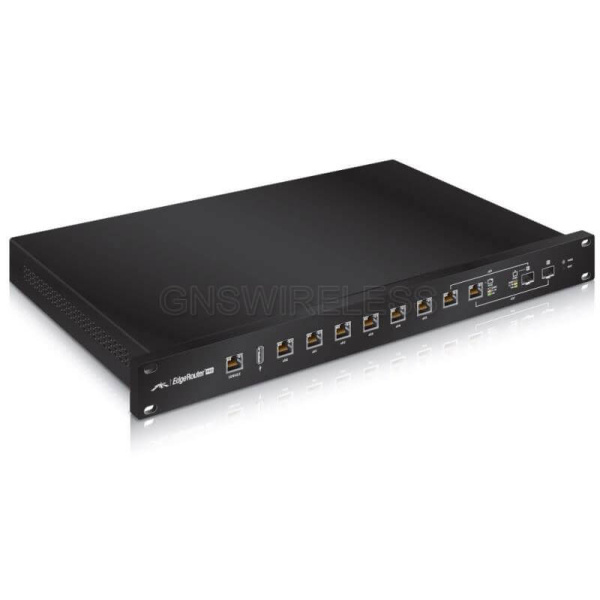

ERPRO-8 is a Ubiquiti EdgeRouter PRO. It comes with six (6) Gigabit routing ports. Two (2) Gigabit RJ45/SFP combination ports and processes 2 million+ packets per second for 64-byte packets. It is 8 Gbps for packets 512 or larger in size. The ERPro-8 is rack mountable.
The ERPro-8 EdgeRouter 8-Port Advanced Network Router from Ubiquiti Networks combines reliability with enterprise-level features. It has a rackmountable form factor with eight functional ports. Powered by a proprietary and intuitive graphical interface and EdgeOS, the Ubiquiti EdgeRouter PRO can easily be configured for routing, security, and management features to efficiently run the network. For advanced network professionals, an integrated CLI is available for quick and direct access, using familiar commands. This 8-port network router is capable of routing up to 2 million+ packets per second.
- Ports
- Six Gigabit routing ports
Two Gigabit RJ-45/SFP combination ports
- Packets
- 2 million+ packets per second for 64-byte packets
8 Gb/s for packets 512-bytes or larger in size
- Intuitive User Interface
- The Ubiquiti EdgeRouter PRO provides a graphical user interface, which is designed for convenient setup and control. Accessed via a network port and Web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit/receive speeds, and status for each physical and virtual interface
- Configuration by CLI
- The CLI provides quick and flexible configuration by command line and features the following:
For power users, configuration and monitoring of all advanced features
Direct access to standard Linux tools and shell commands
CLI access through the serial console port, SSH, Telnet, and the graphical user interface
Manage Your Network
- DHCP Server
- Set up multiple DHCP servers to assign IP ranges in different subnets on different interfaces. You can control dynamic and static IP addressing for your network devices
- Monitoring Tools
- Track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor
- User Accounts
- Manage access to the EdgeRouter using unique administrator and operator accounts
Secure Your Network
- Firewall Policies
- Organize the rules you apply in the order you specify
- Firewall Groups
- Apply the policies to groups filtered by IP address, network address, or port number
- NAT Rules
- The EdgeRouter changes packet addressing based on your customized source and destination NAT rules
Direct Traffic Flow
- Interfaces
- Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation
- Routing
- Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter. With these capabilities and more, the EdgeRouter provides centralized control that you need to optimize the performance and reliability of your network
Operating System
- EdgeOS
- EdgeOS is a sophisticated operating system loaded with features, including:
Static Routes and Support of Routing Protocols: OSPF, RIP, and BGP
Firewall policies and NAT rules
DHCP services
Quality of Service (QoS)
Network administration and monitoring tools
Comprehensive IPv6 support
Choice of Configuration Methods:
Graphical user interface to visualize the workings of a network or the Command Line Interface (CLI) to use advanced, command-driven configuration
