Description

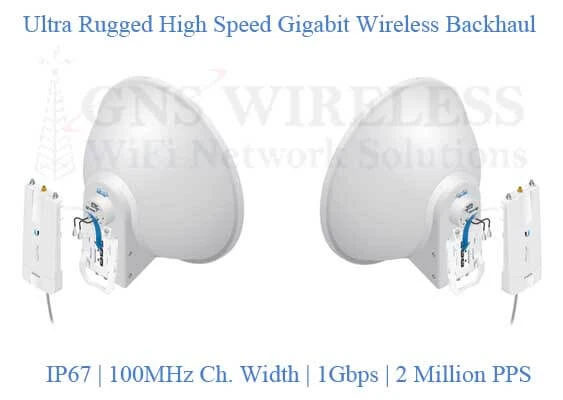

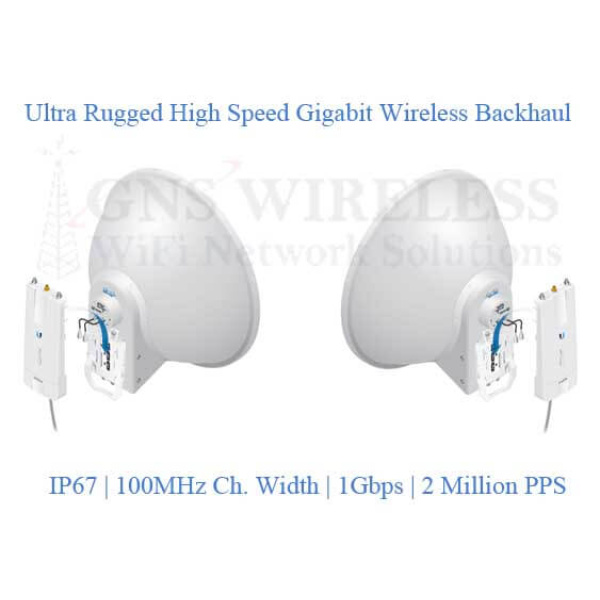

Long Range Point-to-Point Gigabit Wireless Ethernet (Complete Link)

Very High throughput, Enterprise Grade Point to Point wireless backhaul antenna using spectral efficient technology to avoid interference. This GNS Gigabit Wireless Ethernet Bridge is a great option for medium to long distance point to point internet connections to link your two wireless routers, networks, remote solar or PLC’s. Capable of 1 Gbps+ Mbps throughput, this package using proprietary RF filtering to help avoid interference and keep your wireless radios up and running in even the noisiest environments.  5 Mile Point to Point distance can be achieved with clear, unobstructed line of sight only.  Trees, Buildings, Physical Land mass, and other obstructions must be avoided. Please contact us for a free path analysis before purchasing this long-range point-to-point kit.

What’s included in this long-range point-to-point kit:

•  2x IP67 Weatherproof Radios with external RP-SMA connectors

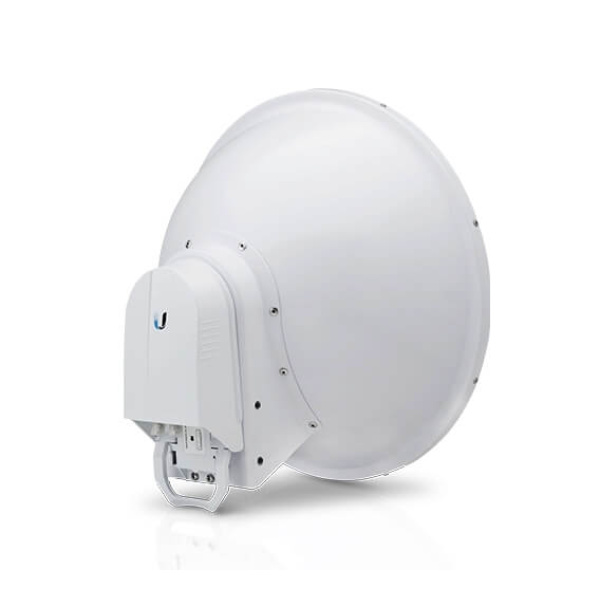

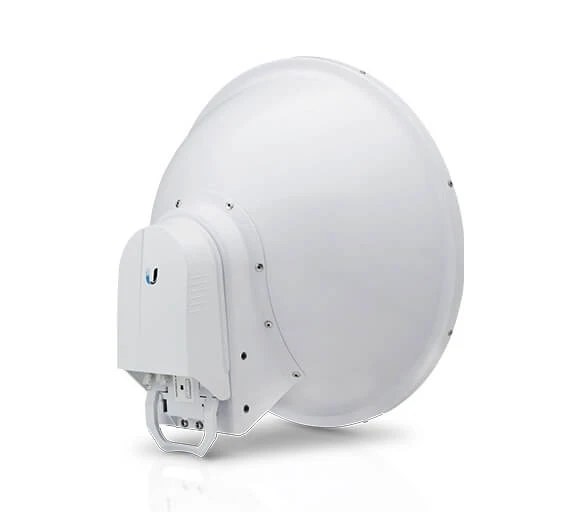

•  2x 23 dBi Directional Dish Antennas (15″ x 15″)
•  2x Gigabit Power over Ethernet Injector (PoE)
•  2x 24V Power Supply
•  2x 100ft. Shielded cat5e Ethernet Cable
•  2x Pole Mount Hardware for 1-3″ OD mast
•  1 Year Warranty including lifetime technical support

How does it work?

The two included antennas are configured to communicate to each wirelessly.  One antenna set to transmit, and the other configured to receive.  The link operates like a transparent bridge, so basically an invisible Ethernet cable.  Single port POE injectors are included for each side, and they will connect to the network switch, or other LAN device in each location.  Power and data are sent over the Ethernet cable, which is the only connection to the outside antenna.

There are signal LEDs on the outside for alignment assistance.  There is also a web based GUI that you can log into, using the IP addresses for each radio.  This will give you real time readings of the signal, noise and capacity.

Full-Band Certification with DFS

This gigabit wireless Ethernet bridge pair covers the entire, license-free, 5 GHz spectrum and includes DFS approval. Anyone around the world can deploy and operate the GNS-5423-HD link in the 5 GHz range practically anywhere they choose (subject to local country regulations).  Great for short range connections, as the antennas included are small and lightweight.  Great for long range deployments, as the transmit power is high, and the channel width adjustable.

Optimal Operation in Unlicensed Bands

Channel width flexibility (10/20/30/40/50/60/80/100 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements. What this means is that in noise free environments, where you are not competing with other 5 GHz radios, you will have the ability to get maximum speed using 100 MHz channel widths with this gigabit wireless Ethernet bridge. For more interference prone areas, you have the ability to step down the channel width, and minimize interference.

Security

The radios operate with 256 bit AES encryption for secure over the air traffic for your most sensitive data.
