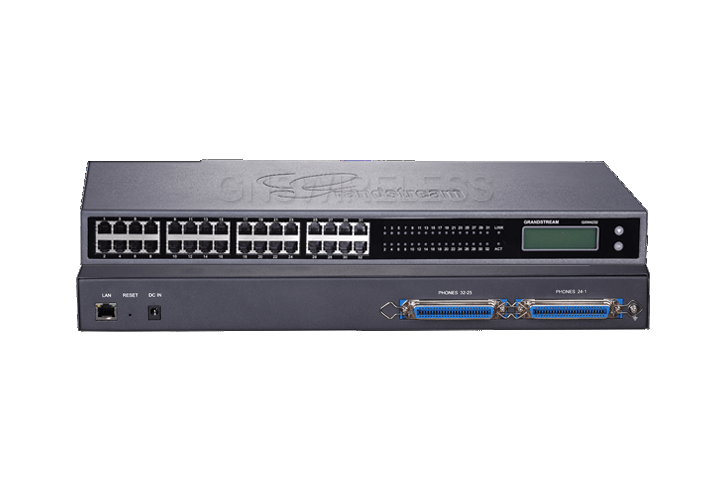

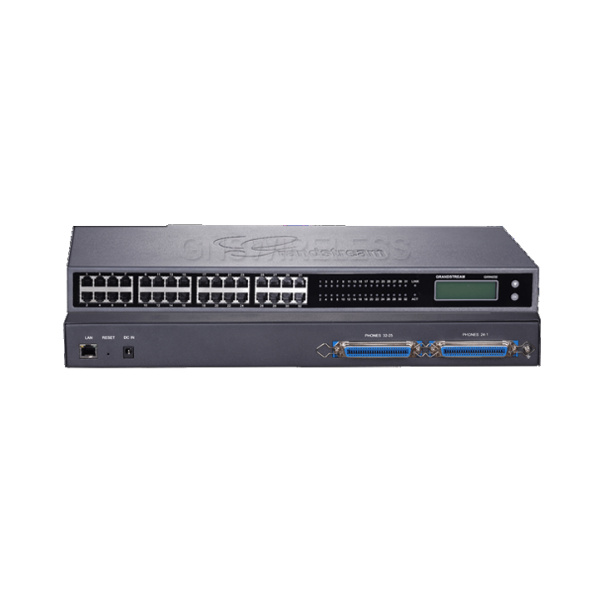

GXW4232 VoIP gateway w/ 32 telephone FXS ports

Description

The GXW4232 gateway offers small-to-medium sized business a cost-effective hybrid IP and analog telephone system that allows them to enjoy the benefits of VoIP communications while preserving investment on existing analog phones, Fax machines and legacy PBX systems. The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system.

Features:

• 16 telephone FXS ports with both RJ11 and 50-pin Telco connectors, as well as per port LED
• Gigabit Ethernet and a backlit 128×32 graphic LCD display with support for multiple languages
• 2 SIP server profiles per system and independent SIP account per port
• Supported voice/Fax codecs include G.711, G.723.1, G.726, G.729A/B, iLBC, T.38 Fax
• Advanced carrier grade 128ms-tail-length line echo cancellation
• Over-voltage and over-current protection (ITU-T K.21 Basic Test Level)
• Support VMWI, NEON LED and stutter tone for message waiting indication
• Automated provisioning using TR-069 or AES encrypted XML configuration file; TLS/SRTP/HTTPS for advanced security and privacy protection

Technical Specs:

• Telephone Interfaces: 16x RJ11 FXS ports plus 1x 50-pin Telco connector
• Network Interfaces: 1x 10M/100M/10000Mbps auto-sensing RJ45 port
• LED indicators: LAN Link, LAN Activity, Connection Per Telephone Port
• LCD DIsplay: Backlit 128×32 graphic LCD display with support for multiple languages
• Voice-over-Packet Capabilities: Carrier grade 128-ms-tail-length line echo cancellation, dynamic jutter buffer, modem detection & auto-switch to G.711
• Voice Compression: G.711, G.723.1, G.726 (40/32/23/16), G.729 A/B, iLBC
• Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kbps and auto-switch to G.711 for Fax Pass-through, Fax Datapump V.17, V.21, V.27ter, V.29 for T.38 fax relay
• Telephony Features: Caller ID display or block, call waiting, blind or attended call transfer, call forward, do not disturb, 3-way conference, last call return, paging, message waiting indicator LED (NEON LED) support and stutter tone, auto dial, flexible dial plan.
• QoS: DiffServ, TOS, 802.1P/Q VLAN tagging
• Network Protocols: TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, PPPoE, STUN, LLDP (pending)
• DTMF Method: Flexible DTMF transmission methods including ln-audio, RFC2833, and/or SIP INFO
• Signaling: SIP (RFC 3261) over UDP/TCP/TLS
• SIP Server Profiles & Accounts Per System: 2 distinct SIP server profiles per system and an independent SIP account per telephone port
• Provisioning: TFTP, HTTP, HTTPS, TR069
• Security: SRTP, TLS/SIPS, HTTPS, 802.1x
• Management: Syslog, HTTPS, Web browser, voice prompt, TR-069
• Universal Power Supply: Output – 12VDC, 5A; Input – 100 ~ 240VAC, 50 ~ 60Hz
• Environmental: Operating: 0° ~ 40°C; Storage: -20°C ~ 60°C; Humidity: 10% ~ 90% (non-condensing)
• Electrical Protection: Over-voltage and over-protection (ITU-T Recommendation K.21, Basic Test Level)
• Dimensions: 440mm (L) x 185mm (W) x 44mm (H)
• Unit Weight: 2.39KG
• Package Weight: 3.48KG
• Mounting: Desktop and rack mount with front brackets
• Short & Long Haul: 2 REN, up to 1500ft on 24 AWG wire
• Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current
• Compliance: FCC: Part 15 (CFR 47) Class B; CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RoHS C-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950 ITU-T K.21 (Basic Test Level); UL 60950 (power adapter)
