Description
Outdoor 8 Port 10/100 48VDC Passive POE Switch System. Includes 48VDC 120W AC/DC power source and Gigabit POE Inserter.
8 Port POE Switch:
1 data/PoE input
7 data/PoE output automatic data crossover
Description

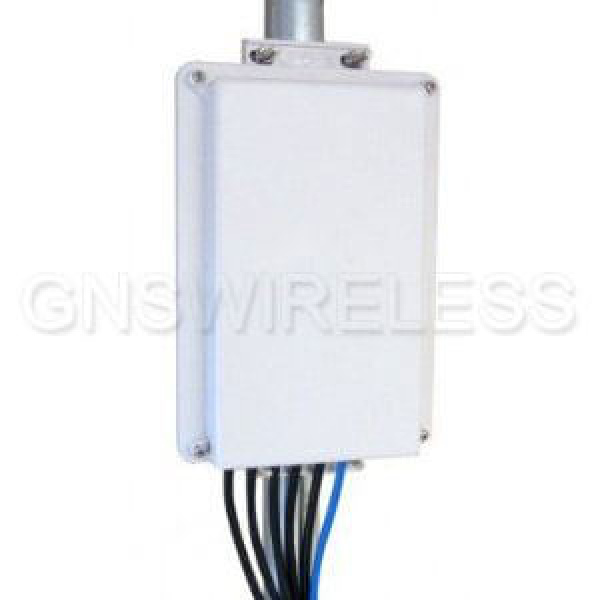

The Outdoor 8 Port 48V Passive POE Switch System is designed for operation in harsh outdoor environments. The switch can be powered via a wire terminal connector or over POE into the uplink port. This allows the switch to be mounted where it is needed and up to 100m from a power source. By using the switch as a repeater, the useable Cat5 cable distance between power source and user POE devices can be doubled to 200m.
The switch is a 8 port Gigabit model with 48VDC Passive POE. The model can be changed in the field just by changing the power supply voltage which powers the switch. The switches are supplied with 48VDC 120W AC to DC power supplies with Gigabit POE inserters. The switch is an unmanaged layer 2 switch. The Outdoor 8 Port 48V Passive POE Switch System is compatible with devices like UBNT and Mikrotik.
-20C to +75C Operation
