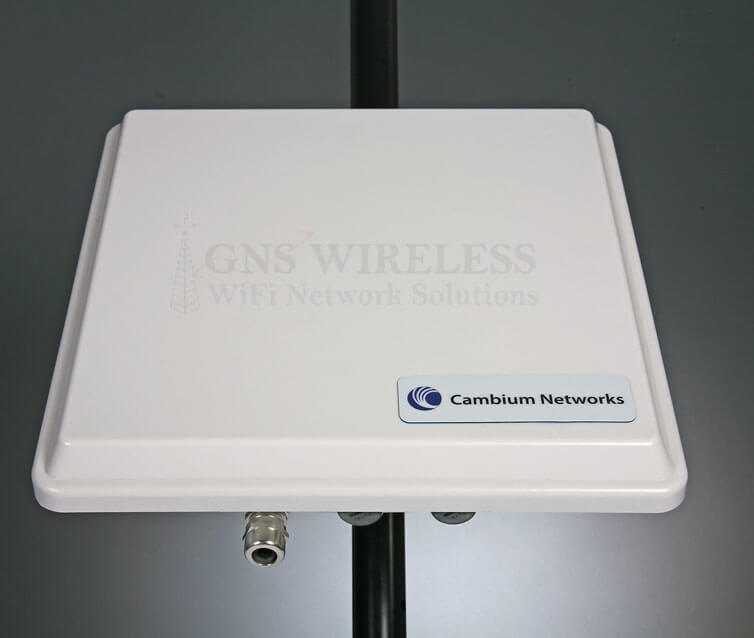

PTP650 Integrated End with AC+DC Enhanced Power Supply, Mounting Bracket and Line Cord (FCC/IC)

Description

PTP650 Integrated End with AC+DC Enhanced Power Supply, Mounting Bracket and Line Cord (FCC/IC)

Cambium C050065h010a Point to Point System, Integrated Radio, leads the industry in spectral efficiency and performance with the Point-to-Point (PTP) 650 wireless backhaul. With up to 450 Mbps aggregate throughput in a 45 MHz channel, and operating from 4.9 to 6.05 GHz, PTP 650 systems let you reliably and securely handle today’s needs with scalability to meet future requirements.

Performance
Service providers, government public safety agencies, and critical infrastructure operators such as utilites and energy companies need to meet the massive growth in demand for data, voice and video traffic. Providing high throughput in limited spectrum is the challenge.

• 4.9 to 6.05 GHz coverage in a single SKU
• Up to 450 Mbps aggregate throughput (45 MHz channel)
• Up to 124 miles (200 km) reach
• Increased link budget at 64/256QAM
• 5 to 45 MHz channel bandwidth flexibility
• Fast Adaptive Modulation
• Tiered Capacity (125-450 Mbps)

Reliability
With wireless communications, many environments such as obstructions, weather, water, distance, and interference pose serious performance and reliability challenges. PTP 650 radios are engineered to handle these challenges and provide carrier-grade reliability with high-performance connectivity in the most difficult environments.

• Dynamic Spectrum Optimization™ (DSO)
• Fast Adaptive Modulation
• Near Line of sight and Non Line of sight performance
• IP66/67 Mechanics
•  -40° C to +60° C operating temperature
•  40 Years Mean Time Between Failures (MTBF)

Versatility
PTP 650 radios provide the versatility you need to configure and deploy a broadband solution that works with your existing network and network-management infrastructure while delivering the highest-level of reliability and efficiency.

• Easy to integrate layer 2 bridge implementation
• Symmetric and Asymmetric TDD operation
• Connectorized/Integrated versions
• 4.9 to 6.05 GHz coverage in a single SKU
• TDD Synchronization
• Standard PoE output port (802.3at)
• Two Gigabit Ethernet Ports and optional SFP port for Fiber
• Split Frequency and Spatial Diversity configurations
• IPv4 / IPv6 dual-stack management

Security
Secure access to network management and the encryption of over-the-air transmissions needs to be assured. At Cambium, we have deployed a high level of cyber security and information assurance.

• 128/256-Bit AES Encryption (FIPS 197)
• HTTPS/TLS and SNMPv3 management interfaces
• Identity-Based User Accounts
• Configurable Password Rules
• RADIUS authentication
• Event Logging and Management  (syslog and on-board)
