Description

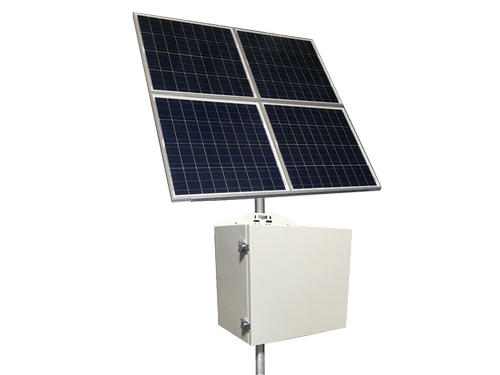

The 50W RemotePro series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment such as switches, POE injectors, POE Switches, additional batteries, and power supplies. A 19” 1U rackmount feature is integral to the enclosure as are multiple DIN Rail mounts.
WEATHERPROOF ENCLOSURE

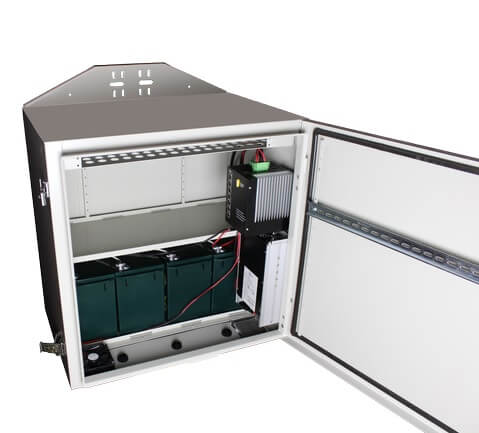

All systems include enclosures that include hinged and gasket sealed with locking latches for security. The latches can be locked using a standard customer supplied padlock. The enclosures can be mounted to a wall or pole with the included mounting bracket system. Poles up to 11” diameter can be accommodated. The enclosure size is 24x24x16″.
The 50W high quality solar panels have a 25 year power output guarantee. The 320W panel can be mounted to a pole or wall with the included side-of-pole mounting system.

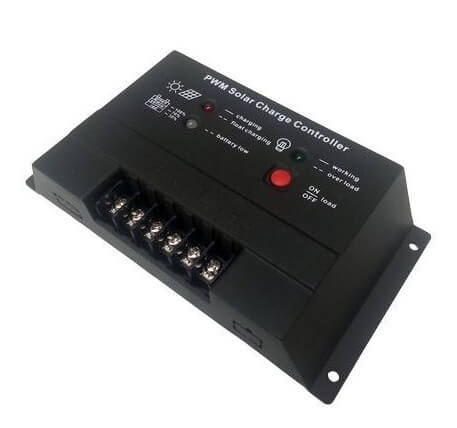

The 12V and 24V battery systems come with a 20A PWM solar controller. Enclosures have three cable gland ports for CAT5 cable, antenna cables/connectors or other cabling. The enclosures include a thermostatically controlled fan which turns on automatically when the temperature exceeds 45°C.
SEALED BATTERY
Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
